Our smallest Residential Dumbwaiter, with a car size of 250mm wide x 310mm deep x 500mm high and either 5 or 20 Kg capacity. It is designed to fit into the smallest space of 540 x 420. The motor is at the bottom of the shaft, so it is perfect when the top floor headroom is less than 2000mm. Originally designed and used as a document lift, this models' reliability has been well proven over the years and now due to rising demand for dumbwaiters inside the home, it is proving very popular when available space is at a bare minimum.

German designed and manufactured, tailor made to your desired size and finish. Available from 2 to 30 floors, single, through or adjacent door entry, speeds from 0.2 to 1 meter per second. Complete with vertical bi-parting landing doors at waist serving height or at floor level, motor positioned can be at the top, bottom or side.

Car widths from 350mm to 1000mm, car depths from 320mm to 1000mm, car heights from 600mm to 1200mm. Complete with self supporting galvanised steel structure. Maximum travel of 120m . Supplied with either single or 3-phase drives, with car and landing door finishes in galvanised steel, zintec ( primed finish for self painting ) stainless steel, powder coated in any color or glass.

Options include: Roller shutter or stainless steel vertical bi-parting door for car entrance protection. Extra shelves. Car heated lifts. Motor room doors. 2 Hr fire rating. Full shaft steel cladding panels. Glass doors. Automatic doors. Intercoms. Tailor made with in 3/6 weeks ( depending on the model ) 20 Kg to 300 Kg.

German designed and manufactured, available as front, front and rear or front and side door entry, complete with vertical bi-parting landing doors and self supporting galvanised steel structure. Maximum travel of 30m / 10 floors. 240 volt or 3-phase 400 volt supply. Car and landing finishes in primed painted for you to paint to match your décor, galvanised steel or stainless steel. We also offer glass doors and fully automatic doors.

Options include: Car roller shutter, extra shelves, car heated lift, motor room doors.  Car Sizes: 400mm  wide x 400mm  deep x 80mm high.  Automatic landing push buttons, car position indicator, lift in use indicator and door open signal, Lift arrival buzzers. Compliance with EC Machinery Regulations 2006/42/EC and EN81- 3:2000.

EC Machinery Regs 2006/42/EC and EN81-3:2000​​

German designed and manufactured, available as two or three stop, single, through or adjacent entry, complete with vertical bi-parting landing doors and self supporting galvanised steel structure. Maximum travel of 7m (two stop) or 10m (three stop) Supplied with either single or 3-phase drives, with car and landing finishes are stainless steel as standard, with landings having 2 hour fire rating.

Options include: Roller shutter or stainless steel vertical bi-parting door for car entrance protection. Extra shelves. Car heated lift. Motor room doors. In stock for installation within 1 to 2 weeks.

Car Size: Width 460mm X Depth 560mm X Height 800mm

Shaft Width 750mm X Shaft Depth 750mm

German designed and manufactured, available as two or three stop, single, through or adjacent entry, complete with vertical bi-parting landing doors and self supporting galvanised steel structure. Maximum travel of 7m (two stop) or 10m (three stop) Supplied with either single or 3-phase drives, with car and landing finishes are stainless steel as standard, with landings having 2 hour fire rating.

Options include: Roller shutter or stainless steel vertical bi-parting door for car entrance protection. Extra shelves. Car heated lift. Motor room doors. In stock for installation within 1 to 2 weeks.

Car Size: Width 710mm X Depth 820mm X Height 800mm
Shaft Width 1000mm X Shaft Depth 1000mm

German designed and manufactured, available as two or three stop, single, through or adjacent entry, complete with vertical bi-parting landing doors and self supporting galvanised steel structure. Maximum travel of 7m (two stop) or 10m (three stop) Supplied with either single or 3-phase drives, with car and landing finishes are stainless steel as standard, with landings having 2 hour fire rating.

Options include: Roller shutter or stainless steel vertical bi-parting door for car entrance protection. Extra shelves. Car heated lift. Motor room doors. In stock for installation within 1 to 2 weeks. Car Size: Width 460mm X Depth 560mm X Height 800mm Shaft Width 750mm X Shaft Depth 750mm

Car Size: Width 460mm X Depth 560mm X Height 800mm
Shaft Width 750mm X Shaft Depth 750mm

When the headroom of the top floor is insufficient to accommodate a standard top motor drive lift, this Low Headroom Dumbwaiter is the answer. The motor is situated inside the lift structure on the bottom floor so the headroom needed at the top floor can be as little as 1200mm. It comes complete with its own motor room access door that is located under the bottom floor landing door frame. Proven German design and build quality with lasting reliability this dumbwaiter needs minimal servicing and will give years of trouble-free service.

This specialised 100kg 2-stop low headroom dumbwaiter lift is ideal for bars, pubs and restaurants where the lift top door sits directly under the bar or counter or when there is low headroom at the top floor. It has a waist height bi-parting door at the bottom floor, but turns into a hinged door model at the top floor. The top floor door can sit on the floor when used under a counter, or can be at waist height for normal dumbwaiter purposes. It comes complete with its own motor room access door that is located under the bottom floor landing door frame. Second-to-none reliability, minimal servicing, trouble-free service and German quality are just a few of this model's credentials.

The Micro Lift 50A will fit into smaller spaces when space is at a premium for your dumb waiter installation. Usually fitted into small commercial kitchens or sometimes in the home environment, the 50A model packs a significant punch for its relative small size.

It can carry up to 50kg in weight and is finished in either enamel or stainless steel.

With a number of available add-ons it makes it perfect for the home or domestic dumbwaiter lift market, well sized to fit into an old cupboard space or chimney breast, the microlift 50A can be installed in only two days. This model can sometimes be called a small service lift and by its nature comes under the category of other bespoke dumbwaiter lifts.

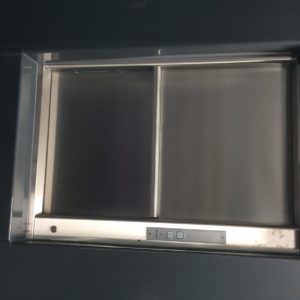

The Micro Lift 50C is the next size up to the 50B model. This lift is supplied as standard at 50kg capacity and is also very regularly specified for use in restaurants, public houses, coffee shops, department stores and bed and breakfasts.

This model is supplied with a 620mm by 620mm cabin which allows for larger plates, large bottles, trays of food and any other items to be transported with a dumbwaiter lift. This dumbwaiter is sometimes described as food hoist or restaurant lift because of larger cabin space it allows.

Our dumb waiter lifts are specifically designed for transporting loads of 50kg or 100kg. This can be either a stainless steel dumbwaiter or an enamel dumbwaiter lift.

The Micro Lift 100A with hinged doors is the same model of dumb waiter service lift as the normal 100A however, it has hinged doors instead of bi-parting shutter doors. Unlike the standard 100A model, this model is on a lead time due to its bespoke lift nature.

Often seen in large kitchens or industrial premises, this dumb waiter is a highly efficient machine when you require fast efficient transport for items such as bottles of beer, wine, packaged goods, car parts etc.

The uses are endless for this fantastic model of dumbwaiter lift and the additional space and capacity make it an excellent choice all round. This can be either a stainless steel dumbwaiter or an enamel dumbwaiter lift.

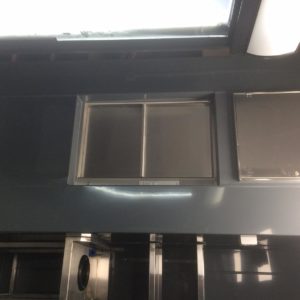

The Micro Lift 100A is one the largest dumb waiter service lifts we provide, and is available in stock. With a larger cabin than other models which are designed for food lift purposes, the 100kg model also known as the Microlift 100A has double the capacity of a normal dumb waiter and a large inside cabin space for moving bulky items up to 100kg in weight.

Often seen in large kitchens or industrial premises, this dumb waiter is a highly efficient machine when you require fast efficient transport for items such as bottles of beer, wine, packaged goods, car parts etc. The uses are endless for this fantastic model of dumbwaiter lift and the additional space and capacity make it an excellent choice all round.

This can be either a stainless steel dumbwaiter or an enamel dumbwaiter lift.

The Micro Lift 100B is the largest size dumb waiter lift we provide. With much a larger cabin size and specification than other models which are targeted to the food lift market, this 100kg model also known as the Micro Lift 100B.

This model has double the weight capability of a standard dumb waiter and a very large inside lift cabin space for moving larger items up to 100kg in weight.

Often seen in large commercial enterprises or industrial places, this service lift is very useful machine when you require safe transportation for large goods under 100kg.

This lift can be used in a multitude of ways and locations due to its size and capacity and is robust in its construction and design. Supplied as either a stainless steel dumbwaiter or an enamel dumbwaiter lift.

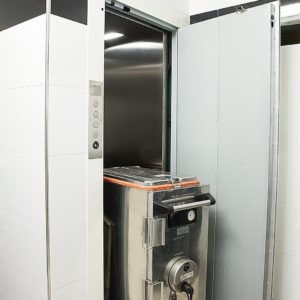

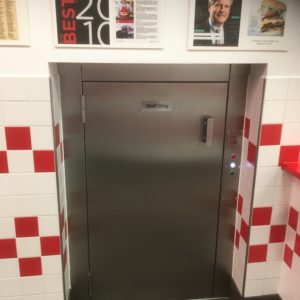

Our 250HP Trolley lift is a 250kg floor level serving trolley lift which is best suited for carrying larger loads than smaller service lifts such a dumb waiter.

Trolley Lifts are typically used in public houses, wine bars or hotels to move beer kegs etc, they are also common in shops and restaurants.

The Trolley Lift has been designed for heavier loads which would not be suitable for staff to handle manually.

Service Lift Co supply a 300kg Model of Trolley lift known as the 300HP. It is made from robust galvanised steel to ensure it can stand up to the challenges a typical trolley lift faces.

This 300kg Trolley lift is available in stock and can perform heavy lifting duties which would not normally be possible by manual handling.

This lift is often found back of house in restaurants, pubs, hotels, industrial and similar environments.

100 to 300 Kg German manufacture. Over 100,000 lifts installed world wide.

Car width: 350 to 1000 mm
Car depth: 320 to 1000 mm
Car height: 600 to 2000mm

Landing doors are hinged type at floor height or can be set to any serving height.

Nominal speed from 0,2 to 1.0 m/s, Car and Landing doors can be Zintec steel for individual painting by the customer after installation, Galvanised Steel, Stainless Steel or Powder Coated to any shade.

Up to 30 floors / stops. Travel up to 120 m

500 to 2,000 Kg. The best and the most reliable service lifts on the market.

Car width: 350 to 1000 mm
Car depth: 320 to 1000 mm
Car height: 600 to 2000mm

Concertina type landing doors. Nominal speed from 0,2 to 1.0 m/s.

Full documentation, operation manual, engineers drawing with every installation plus CE Marking.

Motor room can be at the top floor inside the lift shaft or at the side of the lift shaft, at any floor. Up to 30 floors / stops. Travel up to 120 m.
